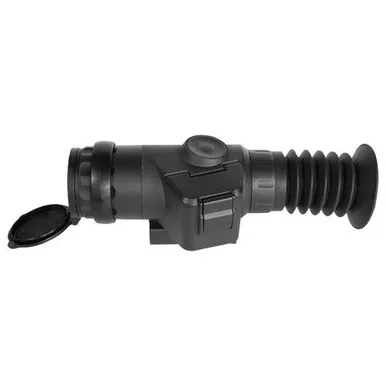

The Wraith 4K Mini 2-16×32 Digital Night Vision Scope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night digital NV scope on the market. Boasting an incredible 4K (3840×2160) CMOS sensor, the Wraith 4K Mini detects objects up to 300 yards away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.
Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full-color HD imaging during the daytime and two digital night vision color palettes (green or black & white), 850nm IR illuminator and first-focal-plane reticle options, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.
Supremely durable, the Wraith 4K Mini is a solid aluminum scope that operates in temperatures ranging from 32F to 140F (0 to 60C), shockproof for drops up to 3 ft., IPX6 water resistant and capable of handling recoil up to .308 Winchester. All backed by Sightmark’s industry leading 3-Year factory warranty.
Items Included
- Sightmark Wraith 4K Mini Digital Night Vision Scope
- 850NM LED IR Illuminator
- Flip-Up Lens Cover
- Focus Throw Lever
- Eye Cup
- Fixed Picatinny Mount
- User Manual
| Electronic components | |
| Type of sensor | CMOS sensor |
| Sensor resolution, pixels | 4K (3840×2160) |
| Display type | FLCOS |
| Display Resolution, pix. | 1280×720 |
| Built-In Video Recorder Availability | Yes |
| Maximum memory card supported, Gb | 256 |
| Format of video clip | AVI |
| Resolution of video clip | 1080/4K |
| Format of photo files | JPEG |
| Resolution of photo files | 4k |
| Memory capacity | Approximately 1.75 hours video with 64gb SD card on 4k@30 quality level. |
| Optical characteristics | |
| Magnification | 2-16 |
| Lens diameter, mm | 32 |
| Digital zoom | 1-8x |
| Lens focus, mm | 50.3mm |
| Field of View,°, horizontal | 7.62 |
| Field of View, m@100m | 13.33 |
| Field of View, ft@100yd | 40 |
| Minimum focusing distance, ft/m | 5/1.524 |
| Eye Relief, in/mm | 2.4 / 60 |
| Diopter adjustment, dptr. | -6 to +3 |
| IR-illuminator | |
| Emitter | LED |
| IR Wavelenght, nm | 850nm |
| Equivalent IR Power, mW | ~1060 on high, ~540 on medium, ~400 on low |
| Battery Life | 2 hours on high |
| Battery type | 2x CR123A |
| Range of Detection | |
| Night Vision detection range, yd/m | 300/274 |
| Power Supply | |
| Power Supply, v | 6 |
| Battery type | 2x CR123A |
| Battery life | 3.6Hrs Video Mode/ 4.4Hrs Preview Mode |
| External Power Supply | 5V via microUSB |
| Reticle | |
| Windage & Elevation click value | 1 pixel/ ~X0.4MOA |
| Adjustment range, elevation | ~ 150 MOA |
| Adjustment range, windage | ~ 350 MOA |
| Number of reticle options | 10 SFP 4FFP |
| Colors | Black, white, red, blue, green, cyan, orange, yellow, magenta |
| Physical & operational characteristics | |
| Body Material | Aluminum |
| Accessory rail mount | Picatinny |
| Operating Temp,°F / C° | 32 to 140 / 0 to 60 |
| Waterproof rating | IPX6 – water resistant |
| Nitrogen Purged, yes/no | no |
| Shockproof, yes/no | yes, 3ft |
| Maximum recoil, caliber | .308 |
| Tube diameter | n/a |
| Length, in/mm | 6.299/160 |
| Width, in/mm | 3.031/77 |
| Height, in/mm | 2.913/74 |
| Weight (with batteries), oz | 21.6 oz |
